Anemometer & vindretning [Pro-D]

Added Tilføj til kurv

Despatched in 12-15 working days

This product will be despatched within 10-15 working days
---- QUESTIONS AND ANSWERS ----

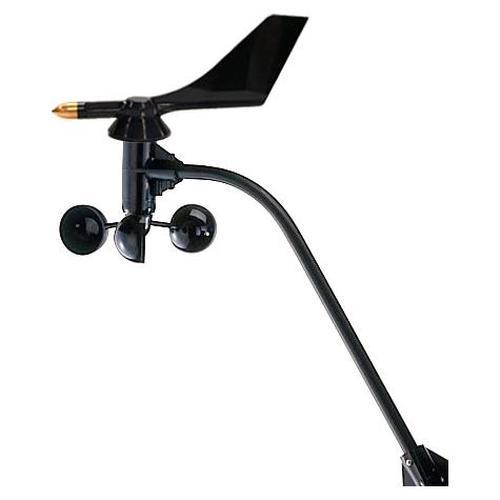

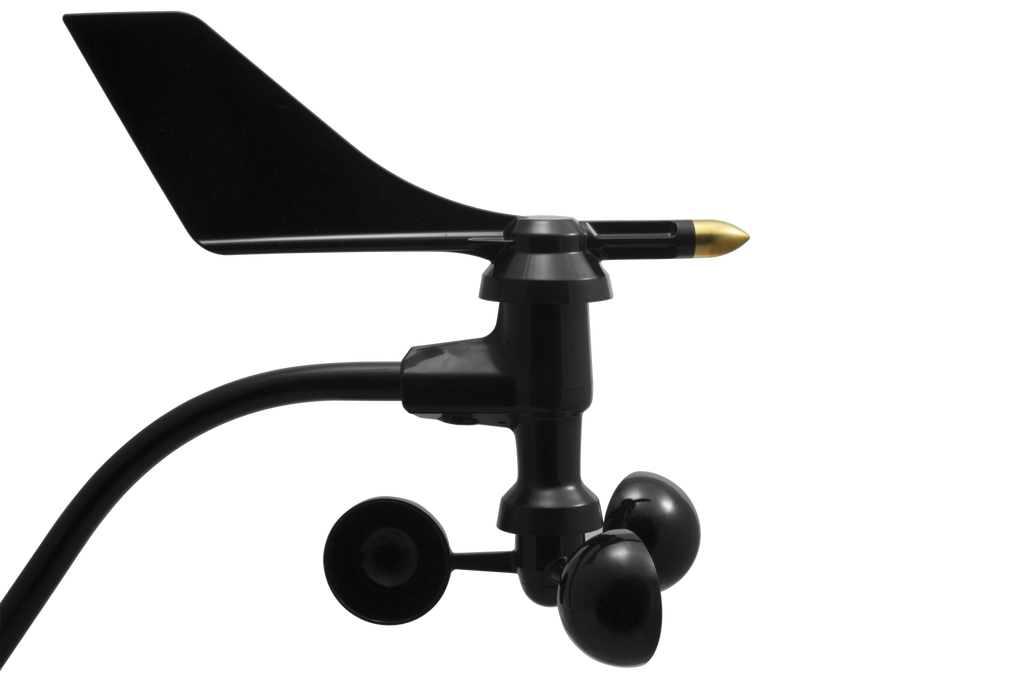

Pro-D-anemometret måler vindhastighed og vindretning, når det er forbundet til en vindhastigheds-datalogger såsom det nye WindLogger, WindTracker eller vores GSM-systemer.

Pro-D-anemometret (Davis 6410) kommer med vindhastighedssensor, vindfane og fikseringer til et 2"-rør (du skal ikke sørge for andet end vindmasten), 13 meter-kabler og tilbehør til installation.

Generelle specifikationer:
Sensortype: Vindhastighed - Vindkopper og magnetisk afbryder Vindretning - Vejrhane og potentiometer
Længde af tilsluttet kabel: 12m (40ft)
Kabeltype: 4-dirigerende, 26 AWG
Materiale: Vejrhane og kontrolhoved: UV-resistent ABS
Vindkopper: Polykarbonat
Anemometer-arm: Sort-anodiseret aluminium
Dimensions: 381mm L x 38mm W x 457mm H
Vindretnings-output:

Hent venligst pdf-filen for flere oplysninger om Pro-D-anemometret.

Customer Reviews

Based on 2 reviews
100%
(2)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
S
Simone Moras
Department of Ecology and Genetics/Simone Moras

In our project, we need to predict methane emission from lakes since it is a potent greenhouse gas. But to do that, we need to understand lake hydrodynamics first (e.g. water temperature, stratification patterns etc.). Wind has a strong effect on lake hydrodynamics and, therefore, it would be fundamental to get high frequency data on wind speed on the lake we study hence this type of kit is providing us with the valuable data. The lake I study is located in an agricultural area so no major obstacles (i.e. trees) will affect the wind speed.

M
Michael Huber
Ski resort AXAMER LIZUM

Windcrane Max system is working as we hoped. We got all the information including the wind direction we needed for our snowmaking system. We had a very cold condition with wind and snow, but it worked very well. Also, the PV panel works very well.

Customer Questions

Ask Question
0
Q: Dear,I have bought the kit Pro-D+Wind Logger.I want to use our own DAQ system for live reading, for that I would need more information regarding the output signal of both sensors (vane anda anemometer). For example, output range V, sensitivity, calibration values.Thank you in advance.João OliveiraBosch Car Multimedia Portugal SA

A: You can find details of the anemometer here: https://www.windlogger.co.uk/collections/sensors/products/pro-d-anemometer and also you can connect to the WINDLogger via serial port, which will provide the data ready for consumption in ASCII format
